HL-Low Temperature Series

Suitable for military, railway transmitter, wide working temperature from -40℃~50℃, good vibration resistance.





HL-Low Temperature Series

Size Model

Typical Capacity(mAh)

Min.Capacity(mAh)

Size(mm)

Weight(g)

Typical Impedance

(mΩ)

OD

Height

AA HL-AA1.8 1800 1700 14.5 49.0 27.5 30
AA HL-AA2.0 2000 1900 14.5 49.0 29.0 30
D HL-D8.0 8000 7400 33.0 61.0 142.0 4
D HL-D8.5 8500 7800 33.0 61.0 150.0 4
D HL-D9.0 9000 8300 33.0 61.0 160.0 4
F HL-F12 12000 11000 33.0 91.3 240.0 3

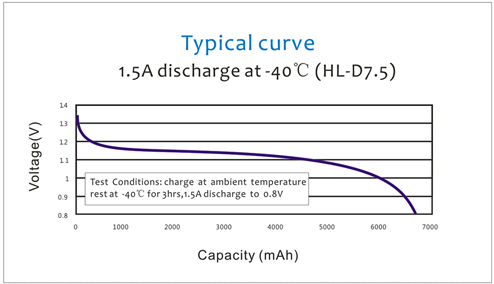

HL-Low Temperature Series Typical Curves
